Brass Prong Snap

B170 Series

Meets the safety, design and reliability requirements of major buyers.

【 Usage 】
Suitable general garments, especially for knitting and baby clothes.

Brass Prong Snap B170 Series Catalog(587KB)

B170 Series

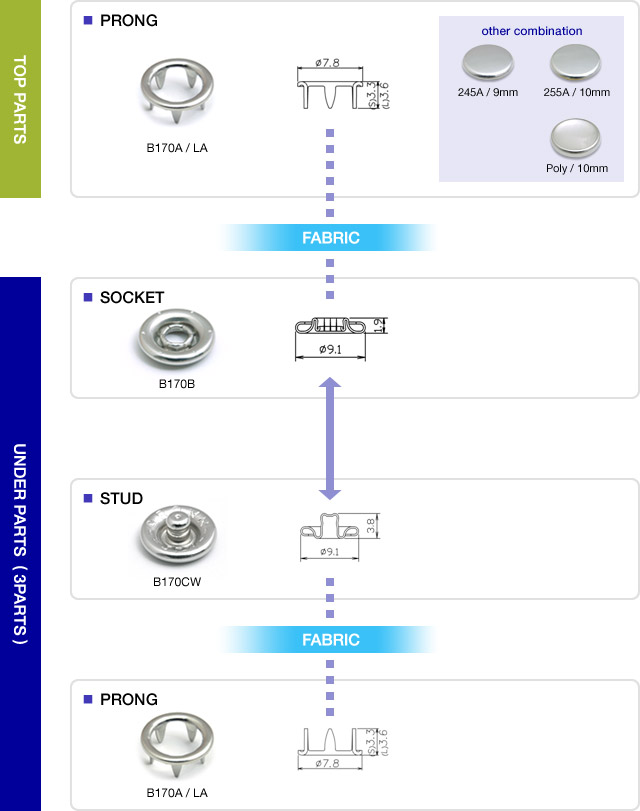

Basic pinch, Max attached height, Holding strenght■Combination of Top parts & Socket *Regular prong【Basic pinch】2.40mm【Max attached height】2.90mm【Holding strength】over 9.20kg *Long prong【Basic pinch】2.60mm【Max attached height】3.30mm【Holding strength】over 9.20kg
Closing snap action & Opening snap action【Closing snap action】3.0~4.5kg【Opening snap action】0.9~1.4kg
Basic pinch, Max attached height, Holding strenght■Combination of Under parts & Stud *Regular prong【Basic pinch】2.40mm【Max attached height】2.85mm【Holding strength】over 9.20kg *Long prong【Basic pinch】2.60mm【Max attached height】3.30mm【Holding strength】over 9.20kg
