Brass Prong Snap

B703 Series

Meets the safety, design and reliability requirements of major buyers.

【 Usage 】
Suitable general garments, especially for knitting and baby clothes.

Brass Prong Snap B703 Series Catalog(728KB)

B703 Series

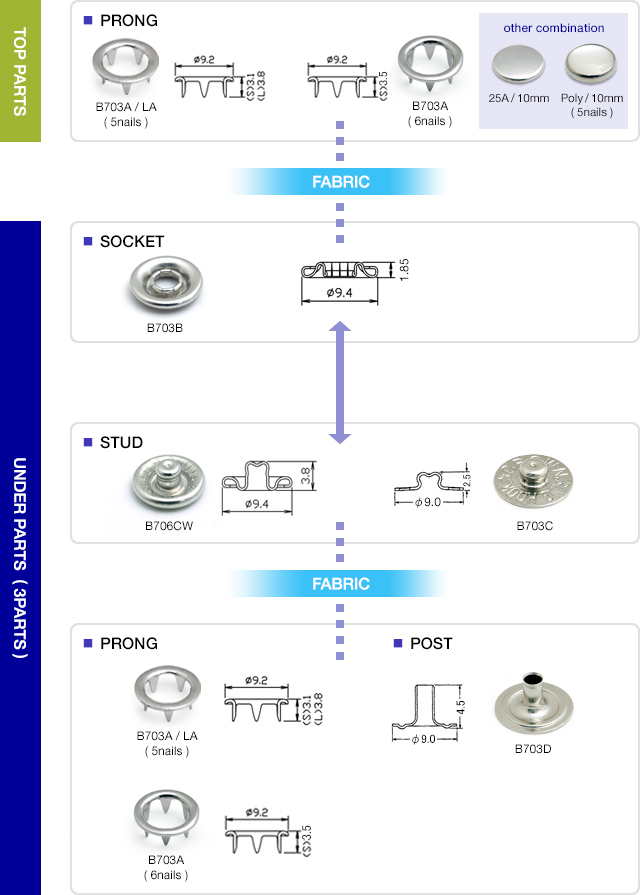

Basic pinch, Max attached height, Holding strenght■Combination of Top parts & Socket *Regular prong 【Basic pinch】2.50mm【Max attached height】2.85mm【Holding strength】over 9.20kg *Long prong 【Basic pinch】2.80mm【Max attached height】3.20mm【Holding strength】over 9.20kg
Closing snap action & Opening snap action【Closing snap action】3.0~4.5kg【Opening snap action】0.9~1.4kg
Basic pinch, Max attached height, Holding strenght■Combination of Under parts & Stud *Regular prong 【Basic pinch】2.50mm【Max attached height】2.85mm【Holding strength】over 9.20kg *Long prong 【Basic pinch】2.80mm【Max attached height】3.20mm【Holding strength】over 9.20kg ■Combination of Under parts & Post 【Basic pinch】1.30mm【Max attached height】2.20mm【Holding strength】over 9.20kg
